CX732Q-M-H, 32x 400Gb QSFP-DD, 2x 10Gb SFP+ Core Switch
12.8 Tbps
Switching Capacity
5600 Mpps
Forwarding Rate
504K
IPv4 Routes
32K
MAC Table Size
The CX732Q-M-H is a 1U enterprise core switch

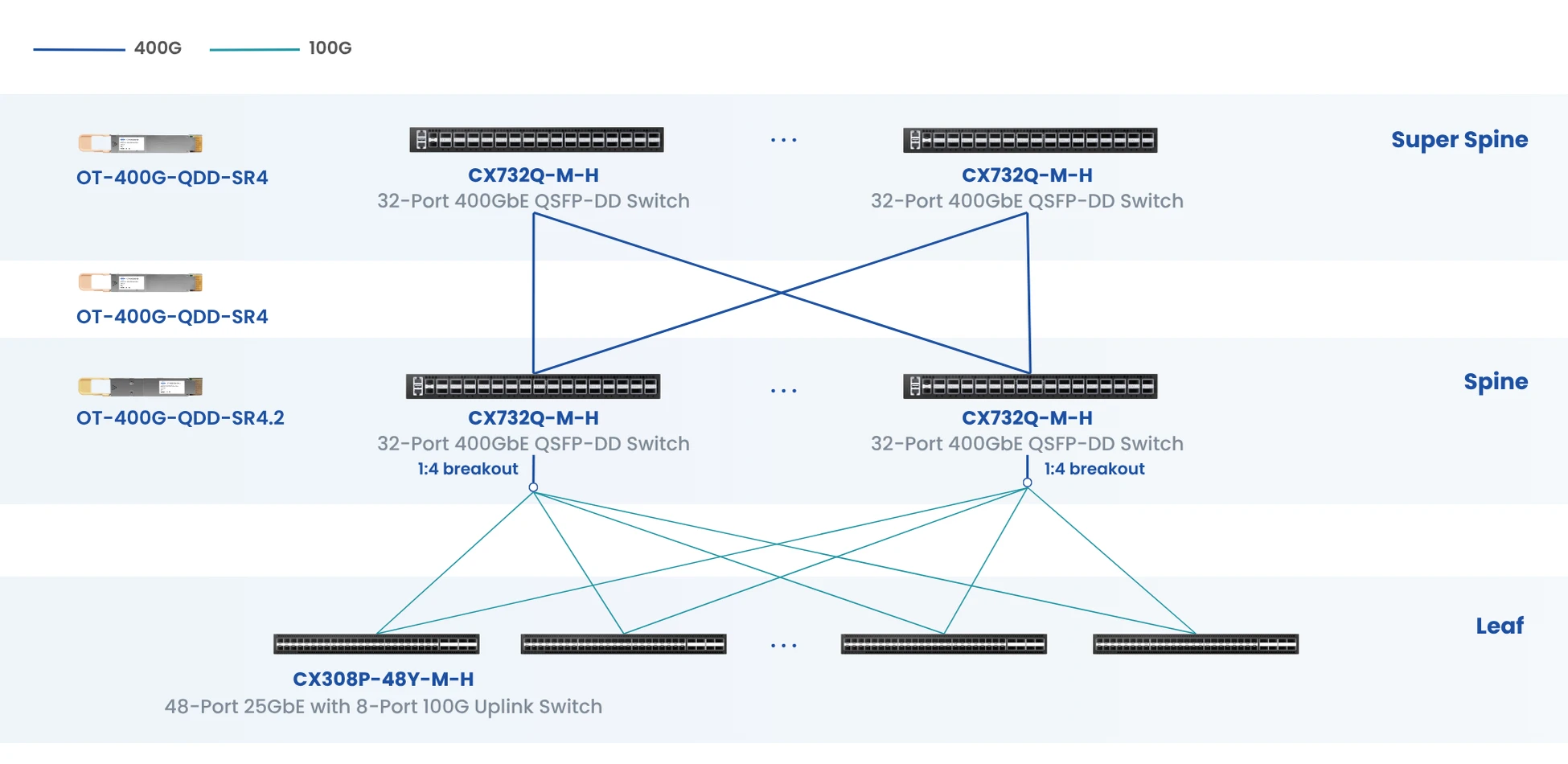

that delivers 32× 400G QSFP-DD ports plus 2× 10G SFP+ for 12.8 Tbps of switching capacity, with a forwarding rate of 5.6 Bpps and 48MB of packet buffer for non-blocking core-layer performance. Built on the Marvell Prestera Falcon ASIC and running Enterprise SONiC (AsterNOS), it is purpose-built as a high-capacity core switch for enterprise campus networks, data center fabrics and service provider backbones, aggregating and routing traffic across the network without becoming the bottleneck. With 504K IPv4 routes, 252K IPv6 routes, 32K MAC entries and 4K VLANs, the CX732Q-M-H anchors networks that scale from a handful of racks to large multi-tier deployments. Each 400G port breaks out to 4×100G, and 100G connections break out further to 4×25G or 4×10G — so a single switch can fan out to a large number of downlink connections, supporting dense server and aggregation-switch access without a separate breakout tier.
Enterprise SONiC, full L2/L3 and open management
The switch ships preloaded with AsterNOS, Enterprise SONiC distribution, with a single software image across the CX-M-H family. On top of it sits a complete Layer 2/Layer 3 feature set — VXLAN, BGP-EVPN, GRE/static GRE tunnels, static routing, VRF, OSPFv2/v3, BGP, MP-BGP and MLAG — for multi-tenant overlays and dynamic route management at the network core. Automation interfaces include ZTP, RESTful APIs, NETCONF/YANG and gNMI, so the switch plugs into existing infrastructure-as-code pipelines without a separate management workflow.
High availability at core
AsterNOS adds EVPN Multihoming for all-active redundancy to downstream switches without dedicated peer links, improving load balancing and simplifying multi-vendor deployments. An optional MPLS module extends the switch with label-switched path management and MPLS-based redundancy for complex topologies where active-active-like reliability is required.
Optional precision timing
Timing-sensitive deployments can add the optional PTP extension card. The hardware port supports PTP as a Boundary Clock (BC) or Transparent Clock (TC), with IEEE 1588v2 and SMPTE 2059-2 support and PTP Class C accuracy (≤10ns maximum time error) — relevant where the core switch also needs to distribute a common clock reference, such as financial infrastructure or broadcast networks.
Operations and traffic visibility
The switch integrates sFlow and Telemetry for continuous KPI export, with ZTP cutting deployment time and manual intervention. An optional Network Packet Broker container, built on SONiC's containerized architecture, adds traffic mirroring, filtering, aggregation, preprocessing, load balancing and output replication without a separate appliance.
Centralized management with Asteria Network Controller
The CX732Q-M-H is managed by the Asteria Network Controller, Asterfusion's unified platform for the CX-M switch family alongside APs, routers, and PON sticks. Zero-Touch Provisioning brings new switches online without manual CLI configuration. The controller provides topology discovery, device status monitoring, and scripted configuration or firmware updates across multiple switches from a single interface. On-premises deployment is available with no licensing fee.
Enterprise-grade reliability
The CX732Q-M-H uses hot-swappable 1+1 redundant power supplies and 5+1 (N+1) redundant, hot-swappable fans to eliminate single points of failure. Front-to-rear airflow and 100–240V AC / 180–300V DC input options suit both rack-mount campus deployments and hot/cold-aisle containment in enterprise data centers — making the CX732Q-M-H a dependable foundation for campus, enterprise and data center core networks.
Optimized Software for Advanced Workloads-AsterNOS
AsterNOS is the pre-installed network operating system on Asteraix’s CX-M Series campus switches. Built on SONiC and enhanced beyond the open-source version, AsterNOS offers advanced Layer 2 and Layer 3 features, as well as sophisticated routing capabilities. Support VXLAN EVPN virtualization, it supports scalable campus networks. AsterNOS is smart, secure, and easy to manage, providing a reliable operating platform for always-on enterprise networks.
Layer 2 Features
Layer 3 Features
Virtualization Features
Mgmt & Monitoring
Quality of Service
Security Features
Marvell® Prestera® Falcon 2.0T–12.8T (Prestera 98CX85xx family)
The CX-N-V2 data center switch family is built on Marvell’s 9th-generation, 16nm Prestera Falcon packet processors, scaling from 2.0 Tbps leaf platforms through 3.2 Tbps spine/leaf designs to 12.8 Tbps high-radix spine switches within the same merchant-silicon architecture. Falcon pairs large shared L2/L3 forwarding and LPM tables with a globally shared, dynamic-threshold packet buffer for superior microburst absorption under heavy east-west load. Exposing the standard SAI and TAM APIs, it is what lets open SONiC-based AsterNOS run consistently across the entire CX-N-V2 line — with no proprietary forwarding stack and no feature licensing.
Architecture & performance
- 9th-generation, 16nm Marvell Prestera Falcon — 2.0 Tbps to 12.8 Tbps wire-speed switching across the 98CX85xx family
- Large shared tables: 128K MAC, 288K IPv4 / 144K IPv6 prefixes, high-scale multi-tenant L2/L3
- Globally shared packet buffer with dynamic thresholds for microburst (µBurst) absorption
- Cut-through switching and dynamic load balancing (DLB) across the fabric
Virtualization & overlays
- eBridge unified virtualization architecture with hardware-based interface/domain virtualization
- Programmable header editor: hardware-accelerated VXLAN, VXLAN-GPE, Geneve and NSH
- MPLS and IPv6 segment routing for flexible transport
RDMA, telemetry & openness
- RoCEv2-aware congestion management for lossless RDMA storage and AI/ML traffic
- In-band network telemetry built into the data path — sFlow, IPFIX, remote port analysis
- Open Switch Abstraction Interface (SAI) + Telemetry & Monitoring (TAM) APIs — merchant-silicon foundation for SONiC/AsterNOS
| Enterprise switch family datasheet | Enterprise Core and Aggregation Switches Datasheet (PDF) |
| Quick start guide for AsterNOS CLI | AsterNOS Documentation |

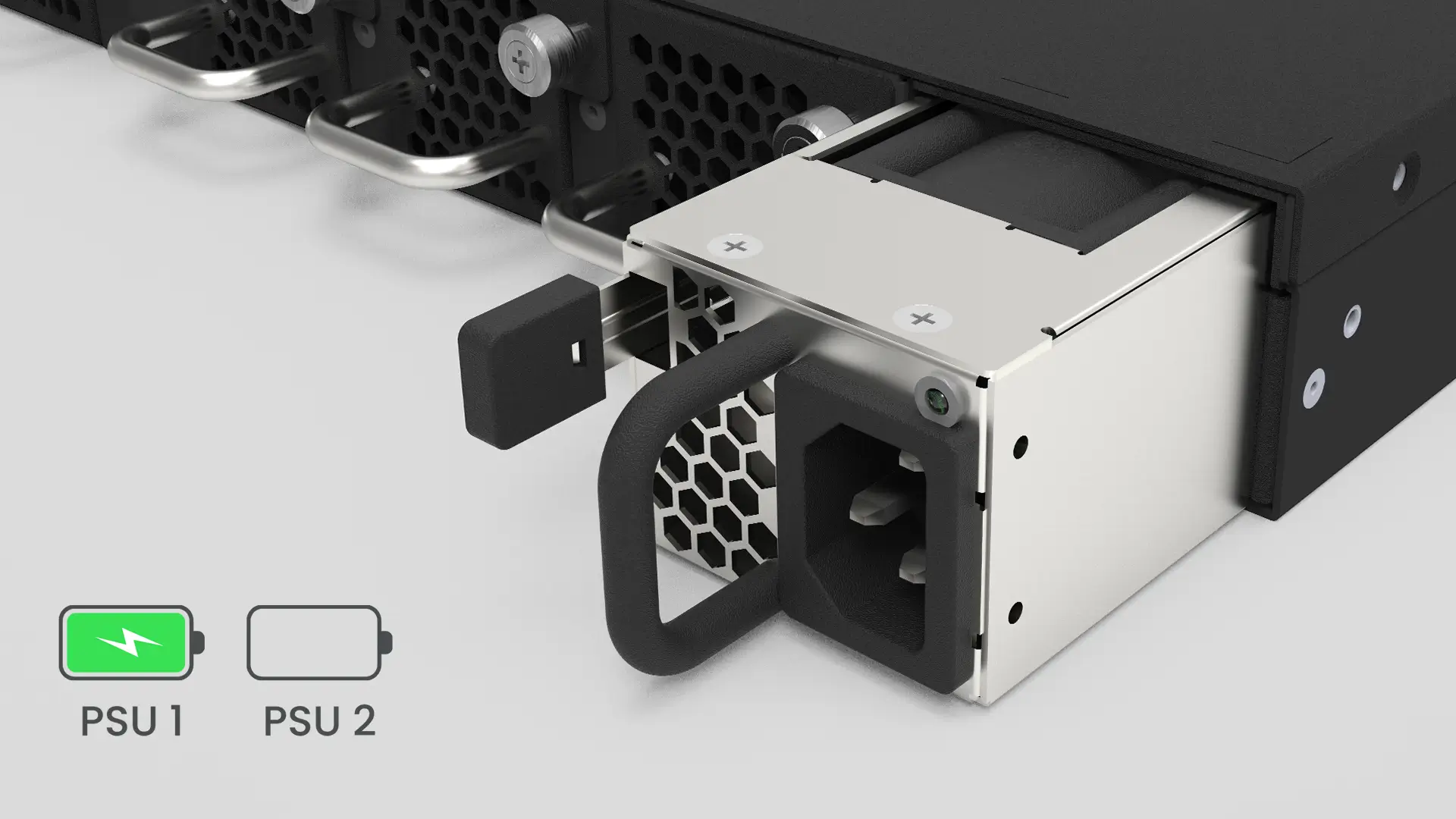

The dual 1+1 hot-swappable power supplies ensure continuous operation by allowing replacement without system shutdown.

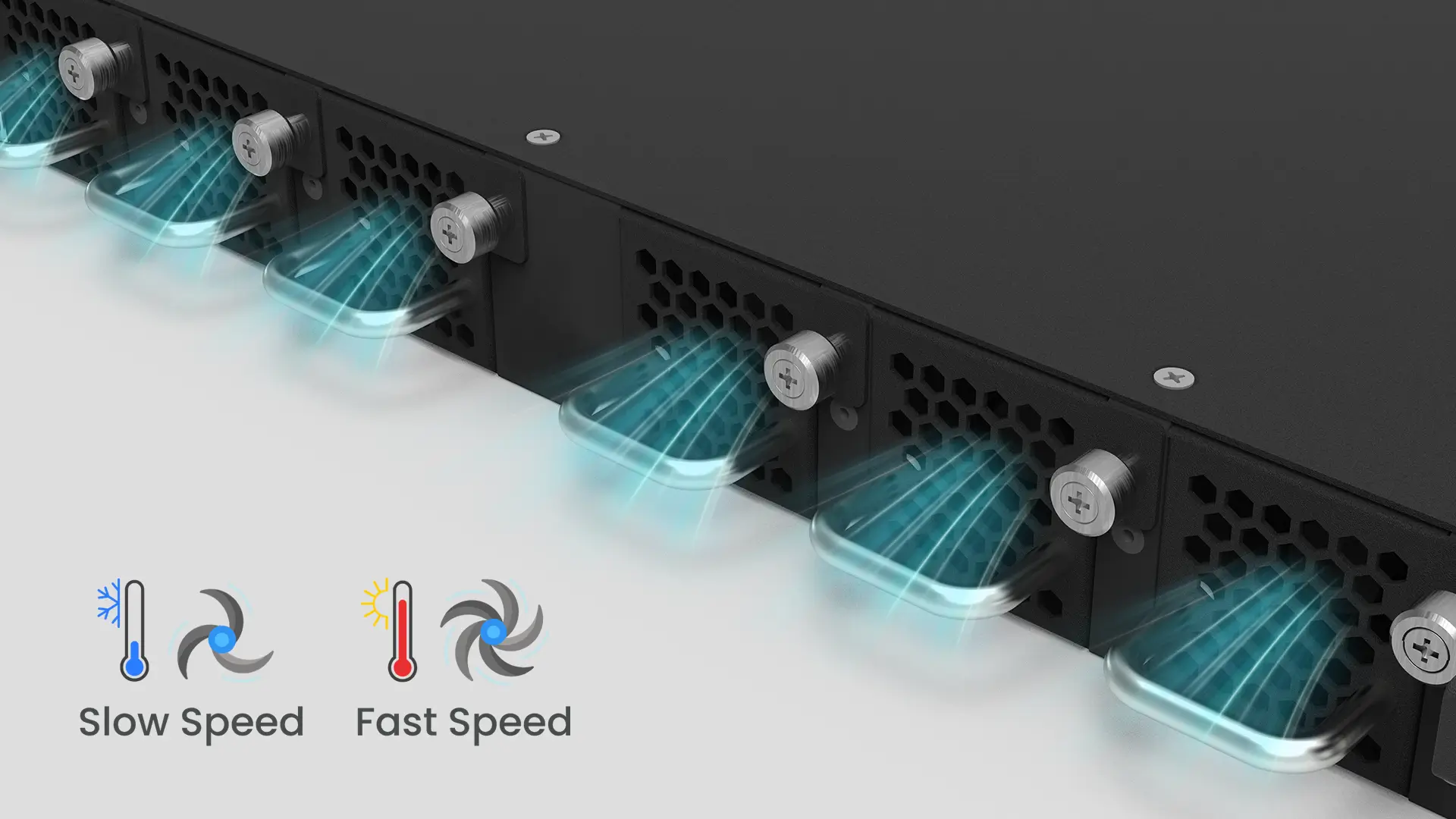

Equipped with 5+1 hot-swappable fan modules, the system delivers reliable cooling performance, maintaining stability and efficiency under demanding workloads.
| CERTIFICATE |  ISO 9001 |  ISO 14001 |  ISO 45001 |  ISO 27001 |  FCC |  CE |
| SCOPE | Quality management system | Environmental management | Occupational health and safety | Information security management | US radio frequency compliance | EU health, safety and environmental compliance |
