32 x 400Gb QSFP-DD Data Center Switch, 12.8Tbps, Sub-500ns Latency
$12,559.00
- 12.8 Tbps in 1U: 32×400G QSFP-DD ports for super-spine and spine layers.
- Ultra-low latency: Sub-500 ns port-to-port.
- Advanced telemetry: INT for real-time packet visibility and congestion control.
- High availability: Hot-swappable redundant power and fan modules.
- Open AsterNOS: Enterprise SONiC pre-installed with top-tier SAI support.
- RoCE & AI fabrics: RoCEv2, BGP-EVPN, VXLAN, MLAG, PFC, ECN, DCBX, and multicast collectives.
- Fully compatible: Works with all major GPUs and SmartNICs.
500 ns
End to End Latency
12.8 Tbps
Switching Capacity
70 MB
Packet Buffer
7600 Mpps
Packet Forwarding Rate
Designed for AI inference and training, high-performance computing (HPC), and cloud-scale storage, the Asteraix CX732Q-N delivers 12.8 Tbps switching capacity in a compact 1U form factor with 32×400G QSFP-DD. Built on Marvell Teralynx 7, this switch supports ultra-low latency (Sub-500 ns) and line-rate L2/L3 forwarding. Enterprise SONiC (AsterNOS) is pre-installed for RoCEv2, EVPN multi-homing, and cloud-native operation. Networking- Support for all leading collective communication libraries, including NCCL, RCCL, oneCCL, BCL, MPI, and Gloo
- Optimize collective operations (Allreduce, Allgather, All-to-all, Broadcast) with built-in multicast

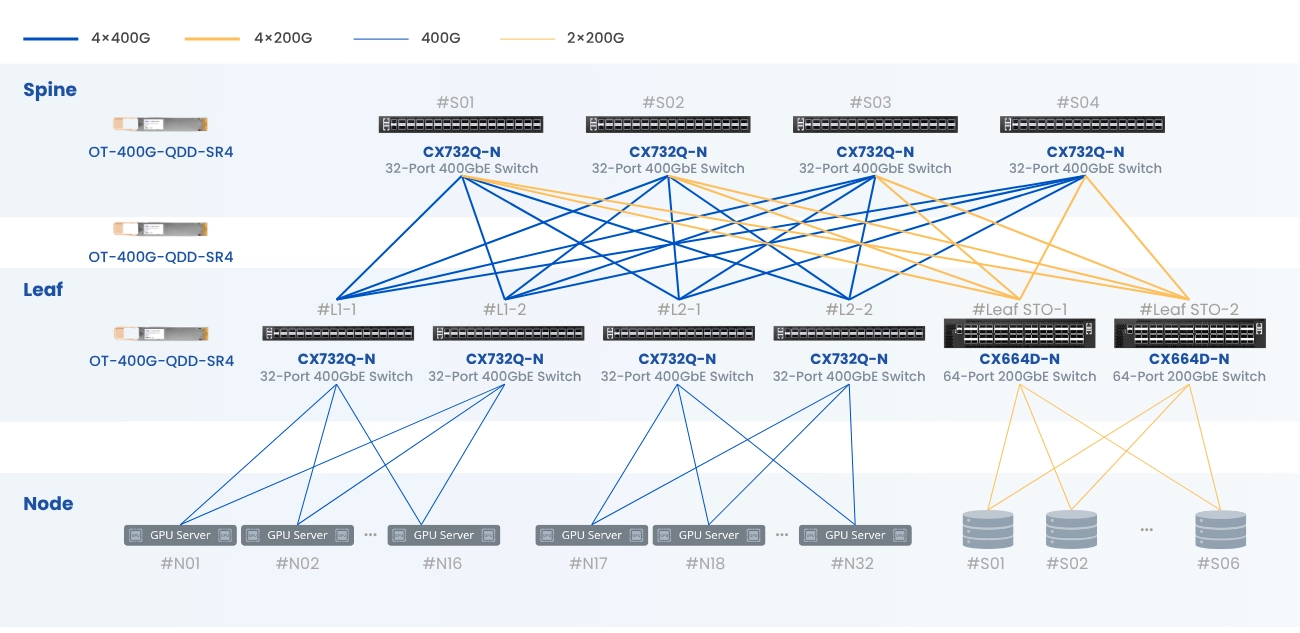

- Support various network topologies, including spine-leaf, fat-tree, dragonfly, butterfly, 3D mesh/torus, hyper-x, and hypercube
- Full RoCEv2 data path with PFC, ECN, DCBX, and INT for lossless AI fabrics
- BGP-EVPN, VXLAN, and MLAG for scalable leaf-spine and multi-tenant deployments
Use case scenarios
- AI / ML training and inference clusters
- High-performance computing (HPC) fabrics
- Cloud and colocation spine-leaf networks
- High-density data center top-of-rack (ToR)
- Storage networks with RoCEv2 optimization
AsterNOS – Enterprise SONiC, Optimized for Performance
AsterNOS is Asterfusion’s enhanced SONiC distribution, pre-installed on every CX Series switch. Built for modern data centers, it combines open-source flexibility with enterprise-grade reliability, usability, and speed. Battle-tested and production-ready, AsterNOS delivers the stability and performance you need — empowering your network to run smarter, faster, and stronger.
Layer 2 Features
Layer 3 Features
Virtualization Features
Mgmt & Monitoring
Quality of Service
Security Features
Marvell® Teralynx® 7
(IVM777xx / IVM775xx / IVM773xx)
The Teralynx 7 family is Marvell’s programmable Ethernet switch silicon scaling from 3.2 Tbps to 12.8 Tbps, covering ToR, leaf, and high-radix spine deployments. Built for cloud, enterprise, HPC, and service provider data centers, it combines large buffers, ultra-low latency, and line-rate programmability with industry-leading power efficiency — 2× performance-per-watt over alternatives. Open SDK and SAI APIs enable native SONiC support with a common software stack shared across the entire Teralynx product line.
Architecture & performance
- TeraSCALE™ switch and buffer fabric — scalable from 3.2 Tbps to 12.8 Tbps within a unified architecture, enabling ToR, leaf, and spine in a single silicon family
- Large shared packet buffer with dynamic thresholds for superior microburst (µBurst) absorption under heavy east-west load Cut-through latency of ~500 ns; industry-leading 2× performance-per-watt advantage over alternatives Up to 128 × 100G, 64 × 200G, or 32 × 400G single-chip configurations; multi-chip chassis scales to 256 × 400G (1024 × 100G)
SerDes & port flexibility
- IVM77700 / IVM77610: 50G PAM4 SerDes — industry’s first high-port-count 200G and 400G connectivity; supports 10/25/40/50/100/200/400 GbE
- IVM77500 / IVM77310: 25G NRZ SerDes — supports 10/25/40/50/100 GbE with full backward compatibility
- Up to 256 SerDes (IVM77700/IVM77500); proven robust interoperability across all speed grades
Programmable forwarding
- InnoFlex™ line-rate programmable forwarding pipeline — extend new protocols via software upgrade, no ASIC respin required
- Comprehensive tunneling: IP-in-IP, GRE, MPLS, VXLAN, and Geneve; highly scalable IPv4/IPv6 L2/L3 forwarding tables
- Advanced QoS and traffic management: DCB, RoCEv2, and QCN for lossless RDMA, storage, and AI/ML traffic
Telemetry & openness
- FLASHLIGHT™ visibility and analytics engine with P4 in-band network telemetry (INT) and critical extensions
- Predictive analytics and automated remediation for self-healing networks, reduced OPEX, and improved uptime
- Open SDK + OCP SAI APIs with native SONiC support; common software stack shared with Teralynx 10 for seamless migration
| Low-latency AI RoCE Switch family datasheet | Low-latency AI RoCE Switches Datasheet (PDF) |
| Quick start guide for AsterNOS CLI | AsterNOS Documentation |

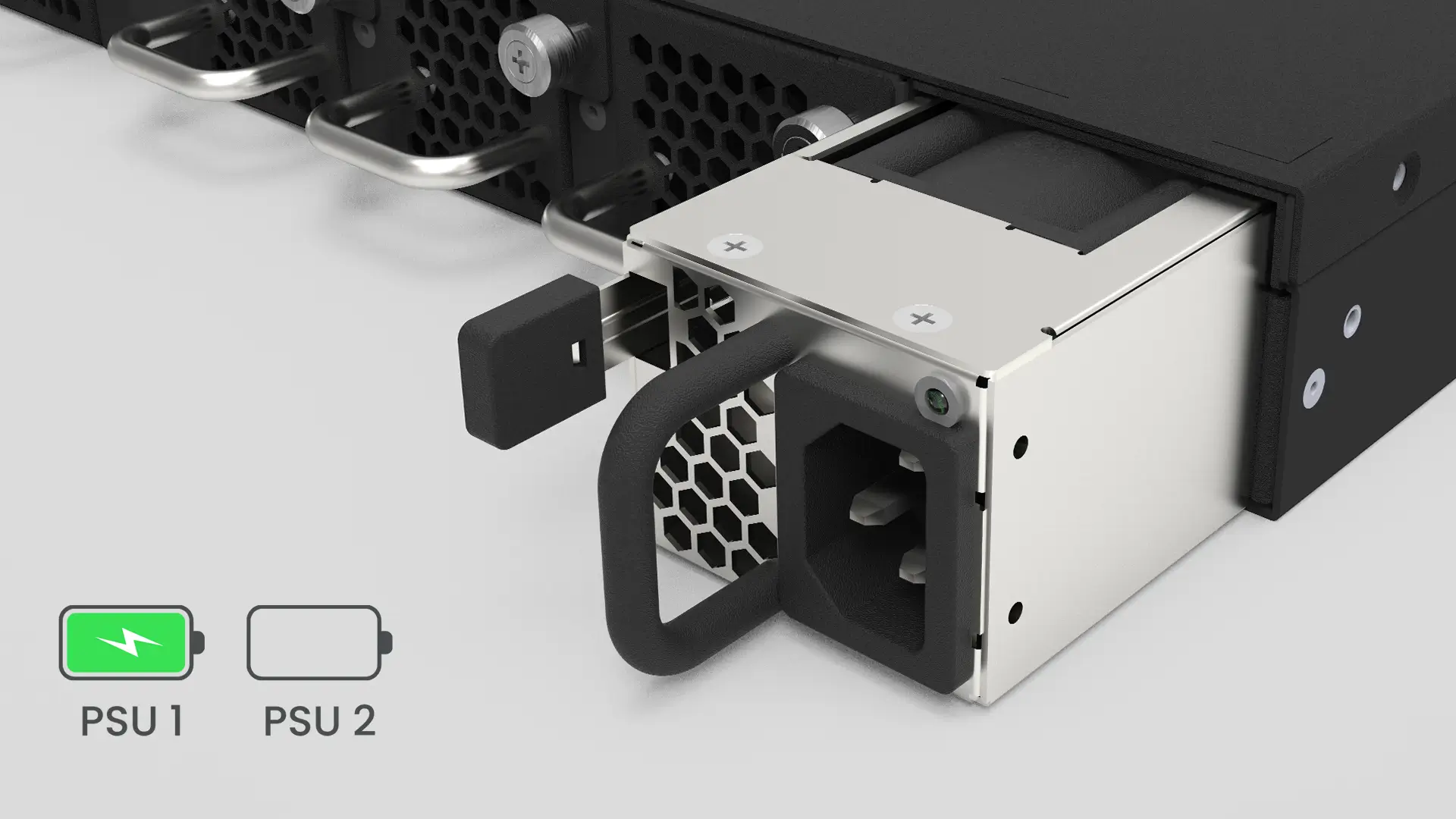

The dual 1+1 hot-swappable power supplies ensure continuous operation by allowing replacement without system shutdown.

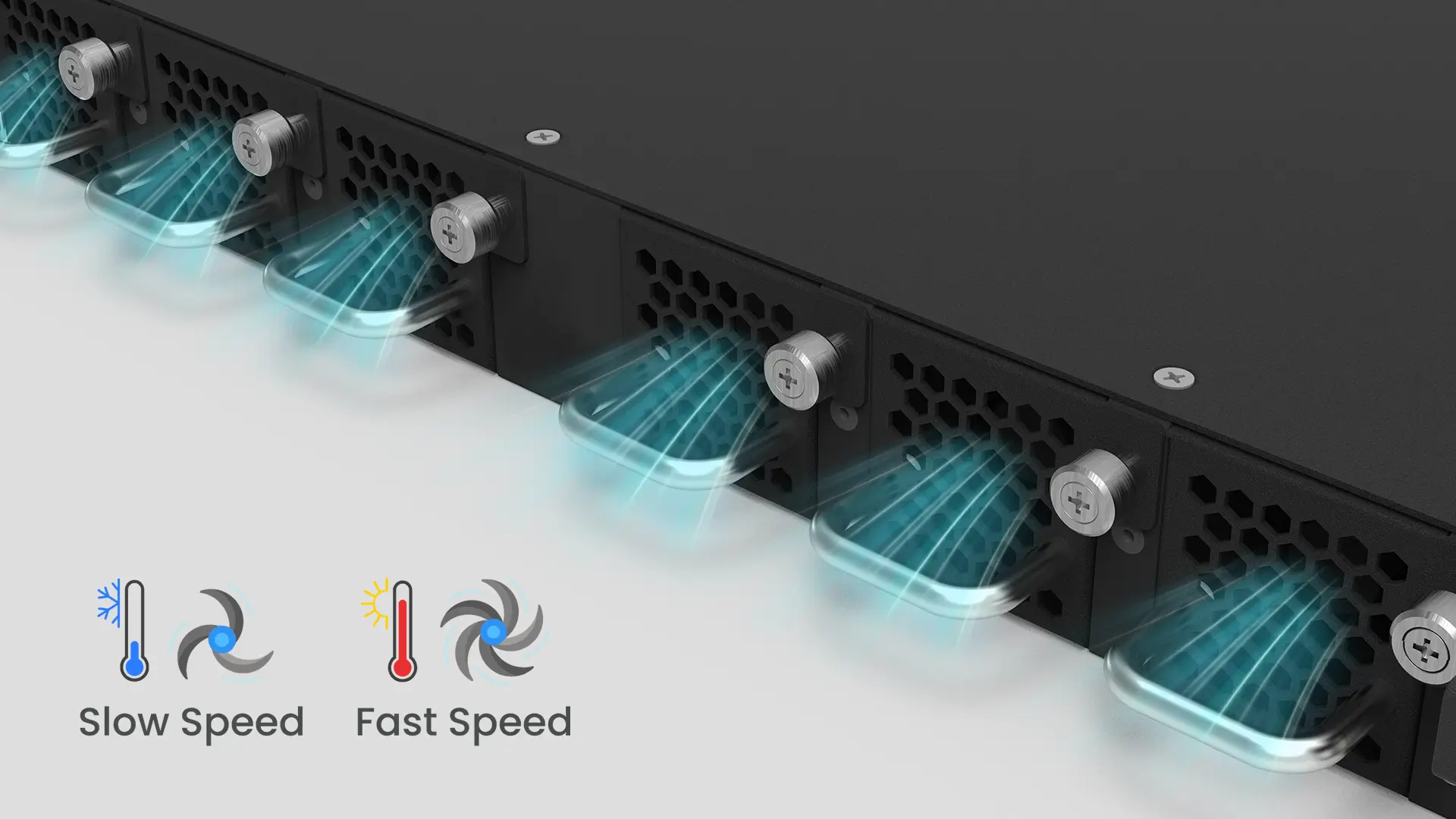

Equipped with 5+1 hot-swappable fan modules, the system delivers reliable cooling performance, maintaining stability and efficiency under demanding workloads.
| CERTIFICATE |  ISO 9001 |  ISO 14001 |  ISO 45001 |  ISO 27001 |  FCC |  CE |
| SCOPE | Quality management system | Environmental management | Occupational health and safety | Information security management | US radio frequency compliance | EU health, safety and environmental compliance |
