64 x 200Gb QSFP56 Data Center Switch, 12.8Tbps, Sub-500ns Latency
$12,000.00
- 12.8 Tbps in 1U: 64×200G QSFP56 ports plus 2×10G SFP+ uplinks.
- Ultra-low latency: Sub-500 ns port-to-port.
- Advanced telemetry: INT for real-time packet visibility and congestion control.
- High availability: Hot-swappable redundant power and fan modules.
- Open AsterNOS: Enterprise SONiC pre-installed with top-tier SAI support.
- RoCE & AI fabrics: RoCEv2, BGP-EVPN, VXLAN, MLAG, PFC, ECN, DCBX, and multicast collectives.
- Fully compatible: Works with all major GPUs and SmartNICs.
500 ns
End-to-end Latency
12.8 Tbps
Switching Capacity
70 MB
Packet Buffer
7600 Mpps
Packet Forwarding Rate
Designed for AI inference and training, high-performance computing (HPC), and cloud-scale storage, the Asteraix CX664D-N delivers 12.8 Tbps switching capacity in a compact 1U form factor with 64×200G QSFP56. Built on Marvell Teralynx 7, this switch supports ultra-low latency (Sub-500 ns) and line-rate L2/L3 forwarding. Enterprise SONiC (AsterNOS) is pre-installed for RoCEv2, EVPN multi-homing, and cloud-native operation. Networking- Support for all leading collective communication libraries, including NCCL, RCCL, oneCCL, BCL, MPI, and Gloo
- Optimize collective operations (Allreduce, Allgather, All-to-all, Broadcast) with built-in multicast

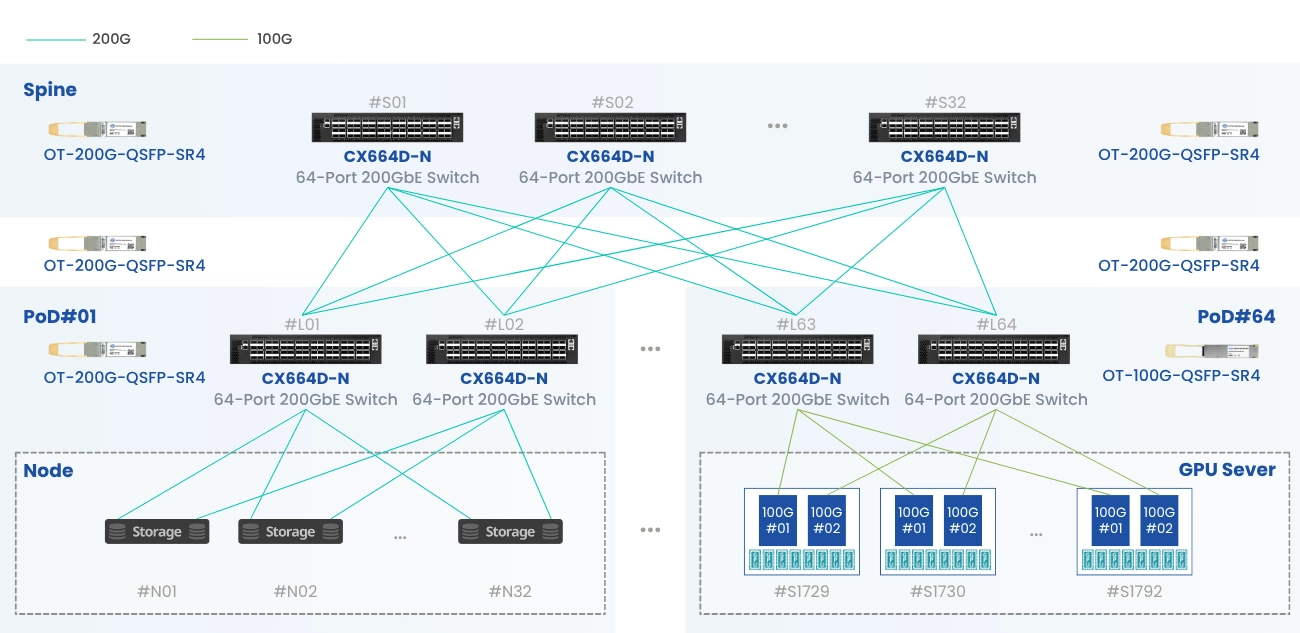

- Support various network topologies, including spine-leaf, fat-tree, dragonfly, butterfly, 3D mesh/torus, hyper-x, and hypercube
- Full RoCEv2 data path with PFC, ECN, DCBX, and INT for lossless AI fabrics
- BGP-EVPN, VXLAN, and MLAG for scalable leaf-spine and multi-tenant deployments
Use case scenarios
- AI / ML training and inference clusters
- High-performance computing (HPC) fabrics
- Cloud and colocation spine-leaf networks
- High-density data center top-of-rack (ToR)
- Storage networks with RoCEv2 optimization
AsterNOS – Enterprise SONiC, Optimized for Performance
AsterNOS is Asterfusion’s enhanced SONiC distribution, pre-installed on every CX Series switch. Built for modern data centers, it combines open-source flexibility with enterprise-grade reliability, usability, and speed. Battle-tested and production-ready, AsterNOS delivers the stability and performance you need — empowering your network to run smarter, faster, and stronger.
Layer 2 Features
Layer 3 Features
Virtualization Features
Mgmt & Monitoring
Quality of Service
Security Features
Marvell® Teralynx® 7
(IVM777xx / IVM775xx / IVM773xx)
The Teralynx 7 family is Marvell’s programmable Ethernet switch silicon scaling from 3.2 Tbps to 12.8 Tbps, covering ToR, leaf, and high-radix spine deployments. Built for cloud, enterprise, HPC, and service provider data centers, it combines large buffers, ultra-low latency, and line-rate programmability with industry-leading power efficiency — 2× performance-per-watt over alternatives. Open SDK and SAI APIs enable native SONiC support with a common software stack shared across the entire Teralynx product line.
Architecture & performance
- TeraSCALE™ switch and buffer fabric — scalable from 3.2 Tbps to 12.8 Tbps within a unified architecture, enabling ToR, leaf, and spine in a single silicon family
- Large shared packet buffer with dynamic thresholds for superior microburst (µBurst) absorption under heavy east-west load Cut-through latency of ~500 ns; industry-leading 2× performance-per-watt advantage over alternatives Up to 128 × 100G, 64 × 200G, or 32 × 400G single-chip configurations; multi-chip chassis scales to 256 × 400G (1024 × 100G)
SerDes & port flexibility
- IVM77700 / IVM77610: 50G PAM4 SerDes — industry’s first high-port-count 200G and 400G connectivity; supports 10/25/40/50/100/200/400 GbE
- IVM77500 / IVM77310: 25G NRZ SerDes — supports 10/25/40/50/100 GbE with full backward compatibility
- Up to 256 SerDes (IVM77700/IVM77500); proven robust interoperability across all speed grades
Programmable forwarding
- InnoFlex™ line-rate programmable forwarding pipeline — extend new protocols via software upgrade, no ASIC respin required
- Comprehensive tunneling: IP-in-IP, GRE, MPLS, VXLAN, and Geneve; highly scalable IPv4/IPv6 L2/L3 forwarding tables
- Advanced QoS and traffic management: DCB, RoCEv2, and QCN for lossless RDMA, storage, and AI/ML traffic
Telemetry & openness
- FLASHLIGHT™ visibility and analytics engine with P4 in-band network telemetry (INT) and critical extensions
- Predictive analytics and automated remediation for self-healing networks, reduced OPEX, and improved uptime
- Open SDK + OCP SAI APIs with native SONiC support; common software stack shared with Teralynx 10 for seamless migration
| Low-latency AI RoCE Switch family datasheet | Low-latency AI RoCE Switches Datasheet (PDF) |
| Quick start guide for AsterNOS CLI | AsterNOS Documentation |

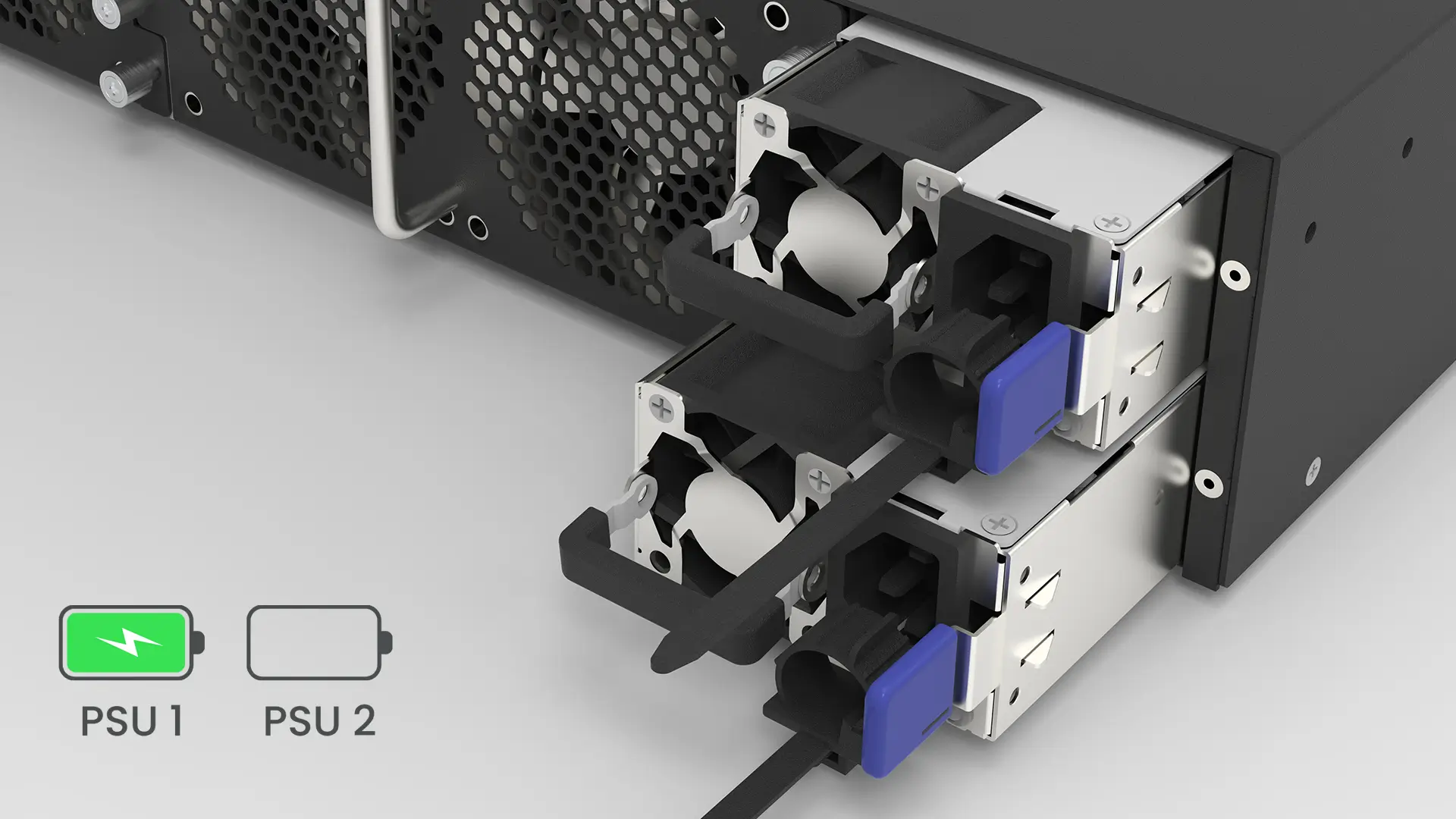

The dual 1+1 hot-swappable power supplies ensure continuous operation by allowing replacement without system shutdown.

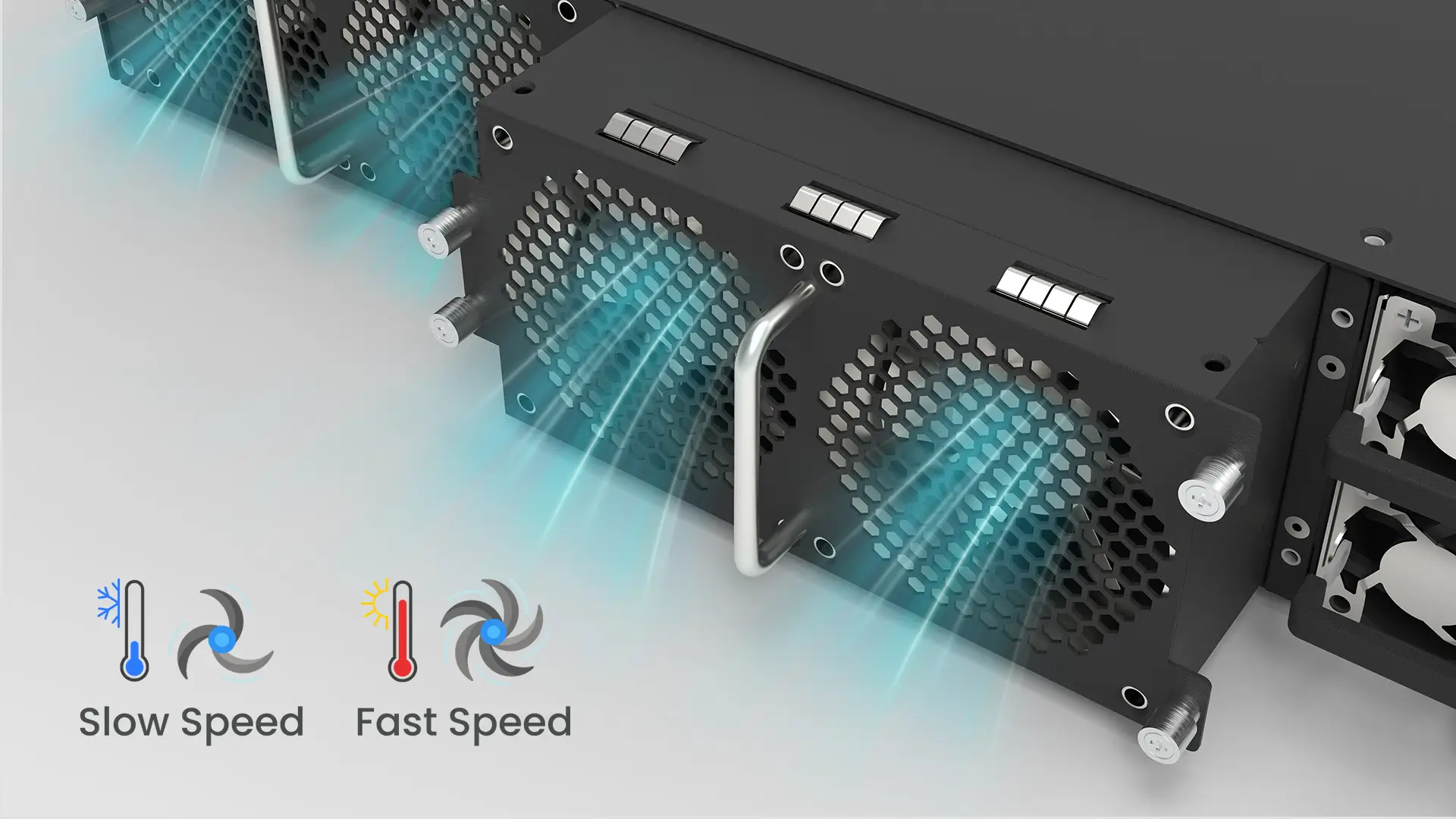

Equipped with 3+1 hot-swappable fan modules, the system delivers reliable cooling performance, maintaining stability and efficiency under demanding workloads.
| CERTIFICATE |  ISO 9001 |  ISO 14001 |  ISO 45001 |  ISO 27001 |  FCC |  CE |
| SCOPE | Quality management system | Environmental management | Occupational health and safety | Information security management | US radio frequency compliance | EU health, safety and environmental compliance |
