800G OSFP 2VR4 50m OM4 MPO12/APC Finned Top
MSA Compatible 800G OSFP 2VR4 Optical Transceiver Module(MMF 850nm, 50m/OM4, Dual MPO-12 )

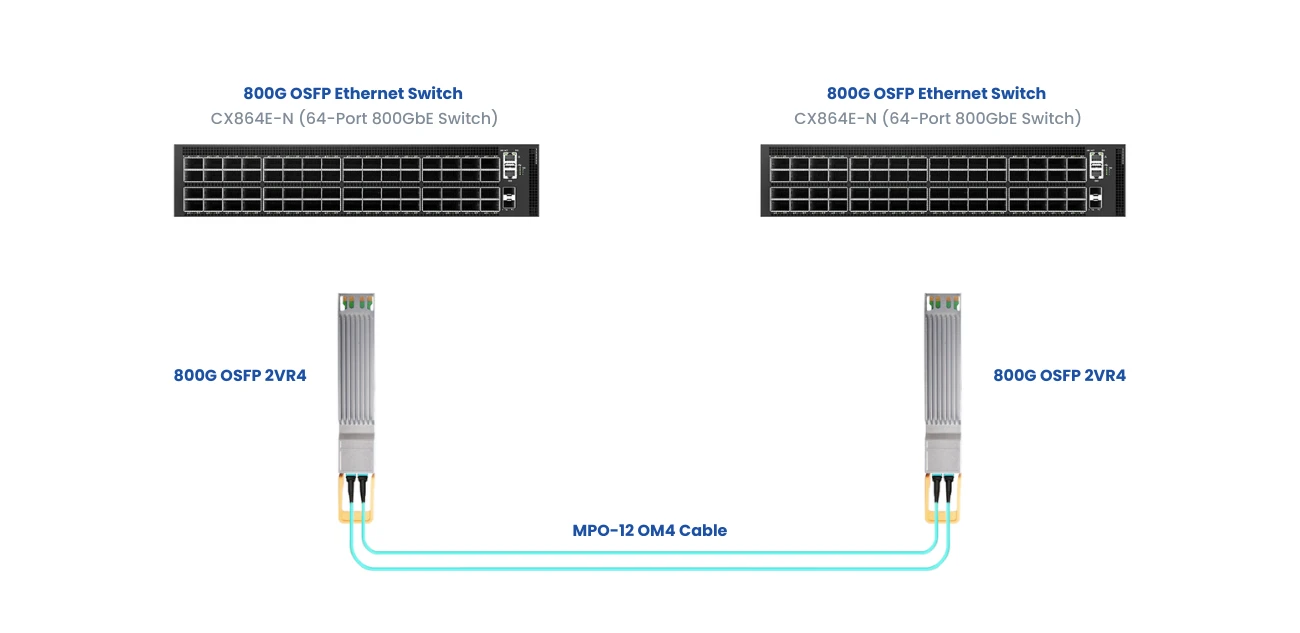

The 800G OSFP 2VR4 transceiver module supports optical communication applications with a range of 50m. It is fully compliant with the OSFP MSA and the IEEE 802.3 standard. The optical module has dual MPO-12 receptacles for connectivity and a maximum power consumption of less than 16W. The OSFP 800G optical module supports 2x 400G LR4 and is ideal for 8x100GbE Ethernet and data center interconnects. Technical Specifications
| Feature | Specification |
|---|---|
| Form Factor | OSFP, hot-pluggable |
| Data Rate | 8 × 106.25 Gbps (850 Gbps) |
| Wavelength / Fiber | 850 nm VCSEL, OM4 multimode fiber |
| Max Distance | 50 m |
| Connector | Dual MPO-12 |
| Power Consumption | <15 W (<13.5 W optimized) |
| Supply Voltage | 3.3 V |
| Operating Temp. | 0 °C to 70 °C |
| Compliance | OSFP MSA, CMIS, IEEE 802.3db, RoHS 2.0 |
Applications
- Hyperscale data centers need high-density short-reach connectivity
- Cloud and AI/ML workloads requiring massive data throughput
- High-Performance Computing (HPC) clusters
- 5G backhaul and metro networks
Form FactorOSFP
ConnectorDual MPO-12
MediaMMF
Max. Cable Distance30m(OM3) / 50m(OM4)
Data Rate850Gbps(8x106.25Gbps)
Wavelengths Range850nm
Transmitter TypeVCSEL
Receiver TypePIN
Extinction Ratio>3.5dB
DDM/DOMSupported
Supply Voltage3.3V
Op. Temperature0 to 70°C (32 to 158°F)
Humidity(non-condensing)5-95%
St. Temperature-40 to 85°C (-40 to 185°F)
Electrical InterfaceHot-pluggable
ApplicationInfiniBand NDR; 800G VR8; 8x100GbE breakout
ProtocolsOSFP MSA, IEEE 802.3db, CMIS compliant
