40G QSFP+ SR4 850nm 150m MPO12 /UPC

SKU:

<1.5 W | VSCEL | 150m | MMF

  • 40 G data rate via 4 × ~11.3 Gb/s lanes
  • Up to 100 m reach on OM3, 150 m on OM4 multimode fiber
  • MPO-12 fiber connector (MTP male)
  • Hot-pluggable QSFP+ form factor
  • Power consumption under 1.5 W, highly energy-efficient
  • Includes 850 nm VCSEL transmitters and PIN receivers
  • Supports I²C-based digital diagnostics (DDM/DOM)
  • Operates with a single 3.3 V supply at 0–70 °C
  • Fully compliant with QSFP+ MSA and IEEE 802.3ba (40GBASE-SR4)
Request Discount

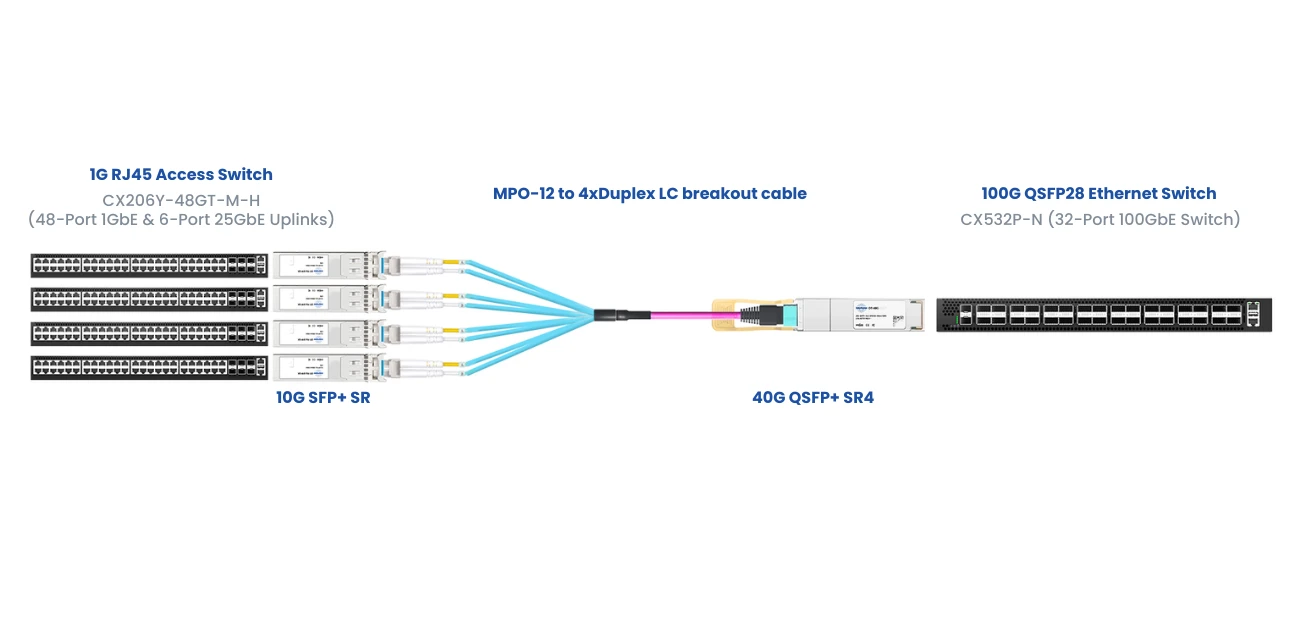

Up to 150 meters of OM4 MMF and 100 meters of OM3 MMF connections are made possible by the QSFP+ transceiver module's four-channel, pluggable, parallel, 12-fiber MTP/MPO male connectors and fiber-optic QSFP+ transceiver. An excellent 850nm VSCEL (Vertical Cavity Surface Emitting Laser) transmitter and an 11.3Gb/s PIN photodiode receiver are used in this 40G SR4 QSFP+ module. QSFP+ 40Gbase SR4 functions throughout the standard temperature range of 0° to 70°C. It works flawlessly with every 40GBASE-SR4 standard interface. As described in the QSFP+ MSA, it is outfitted with digital diagnostic monitoring via the I2C interface, which enables real-time access to operating information. The design of this optical module makes installation simple. Data centers, campus networks, and within or between switches, routers, network interface cards (NICs), and other transport equipment are just a few of the many applications for which it is perfect, since it is hot-swappable.

Form FactorQSFP+
ConnectorDuplex LC
MediaMMF
Max. Cable Distance150m OM4/100m OM3
Data Rate40Gbps
Wavelengths Range850nm
Transmitter TypeVCSEL
Receiver TypePIN
Extinction Ratio>3dB
Supply Voltage3.3V
Op. Temperature0 to 70°C (32 to 158°F)
Humidity(non-condensing)5-85%
TX Power-6~2.4dBm
Electrical InterfaceHot-pluggable
Application40GBASE-SR Ethernet
Protocols40G Ethernet Compliant and OTU3
