40G QSFP+ LR4 CWDM 10km Duplex LC

SKU:

<2.5 W | CWDM DFB | 10km | SMF

  • 40 G data rate delivered via 4 × 10 G CWDM lanes
  • Up to 10 km reach over single-mode fiber (1310 nm)
  • Duplex LC connector for SMF interface
  • Hot-pluggable QSFP+ form factor
  • Energy-efficient design with power draw under 2.5 W
  • Includes 4 CWDM DFB lasers for reliable transmission
  • Compliant with QSFP+ MSA and IEEE 802.3ba (40GBASE-LR4) standards
  • RoHS 6 environmental compliance
  • Operating temperature range: 0 – 70 °C
Request Discount

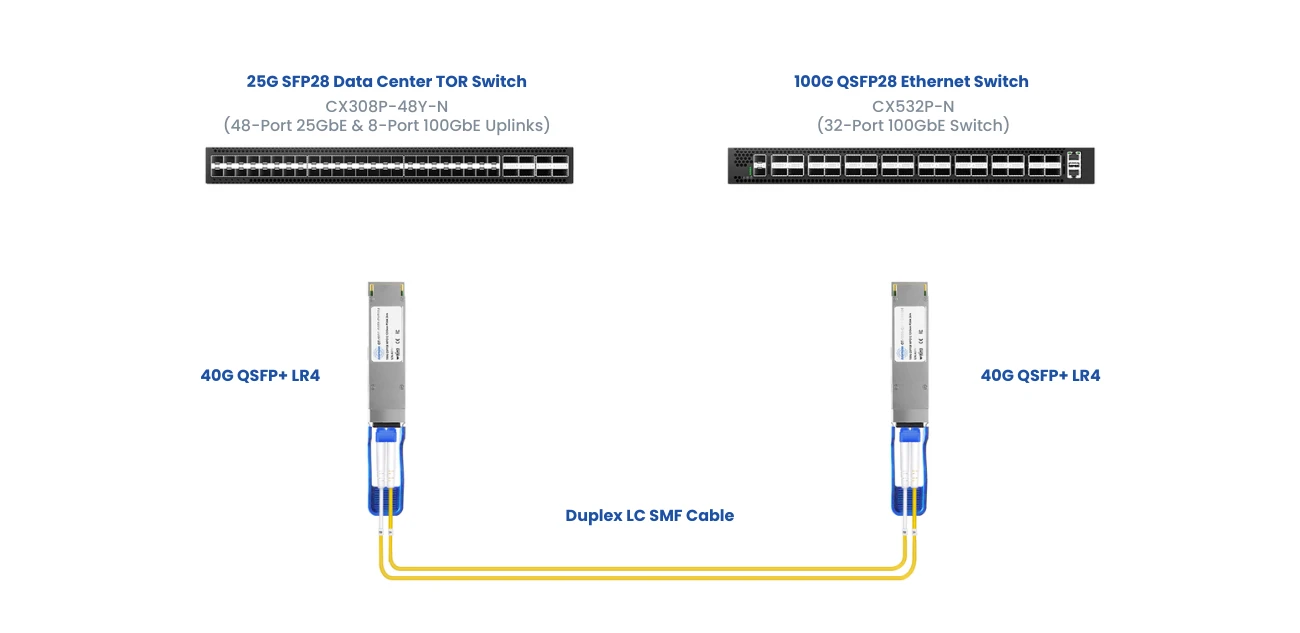

With a 4x10G configuration, this 40G QSFP+ Transceiver Module provides a high-speed 40 Gbps of connectivity in the compact footprint of QSFP. This QSFP+ 40G LR4 module links four transmitters and receivers via an optical multiplexer/demultiplexer (MUX/DeMUX) using Arrayed Waveguide Grating (AWG) technology. This 40Gbase LR4 optical module has been made to perform exceptionally well in applications that conform to the standards of 40GBASE-LR4 and IEEE 802.3ba and QSFP MSA. It is guaranteed to have a 10-kilometer range over standard single-mode fiber. Since it utilizes 1300nm channels to support Coarse Wavelength Division Multiplexing (CWDM), this 40G LR4 transceiver improves efficiency and reliability, which makes it ideal for high-density, complex network scenarios.

Form FactorQSFP+
ConnectorDuplex LC
MediaSMF
Max. Cable Distance10km
Data Rate40Gbps
Wavelengths Range1310nm
Transmitter TypeDFB CWDM
Receiver TypePIN
Extinction Ratio>3.5dB
Supply Voltage3.3V
Op. Temperature0 to 70°C (32 to 158°F)
Humidity(non-condensing)5-95%
St. Temperature-40 to 85°C (-40 to 185°F)
Electrical InterfaceHot-pluggable
Application40GBASE-LR Ethernet
ProtocolsIEEE 802.3ba
