100G QSFP28 CWDM4 2km Duplex LC

SKU:

<3.5 W | DFB | 2km | SMF

  • 100 G data rate using 4×25 Gb/s CWDM lanes (1270/1290/1310/1330 nm)
  • Up to 2 km reach over single-mode fiber (SMF)
  • Duplex LC connector for SMF interface
  • Hot-pluggable QSFP28 form factor
  • Low power consumption (<3.5 W)
  • Real-time monitoring with built-in digital diagnostics (DDM/DOM)
  • Compliant with QSFP28 MSA and 100G CWDM4 MSA standards
  • Operating temperature: 0 – 70 °C
Request Discount

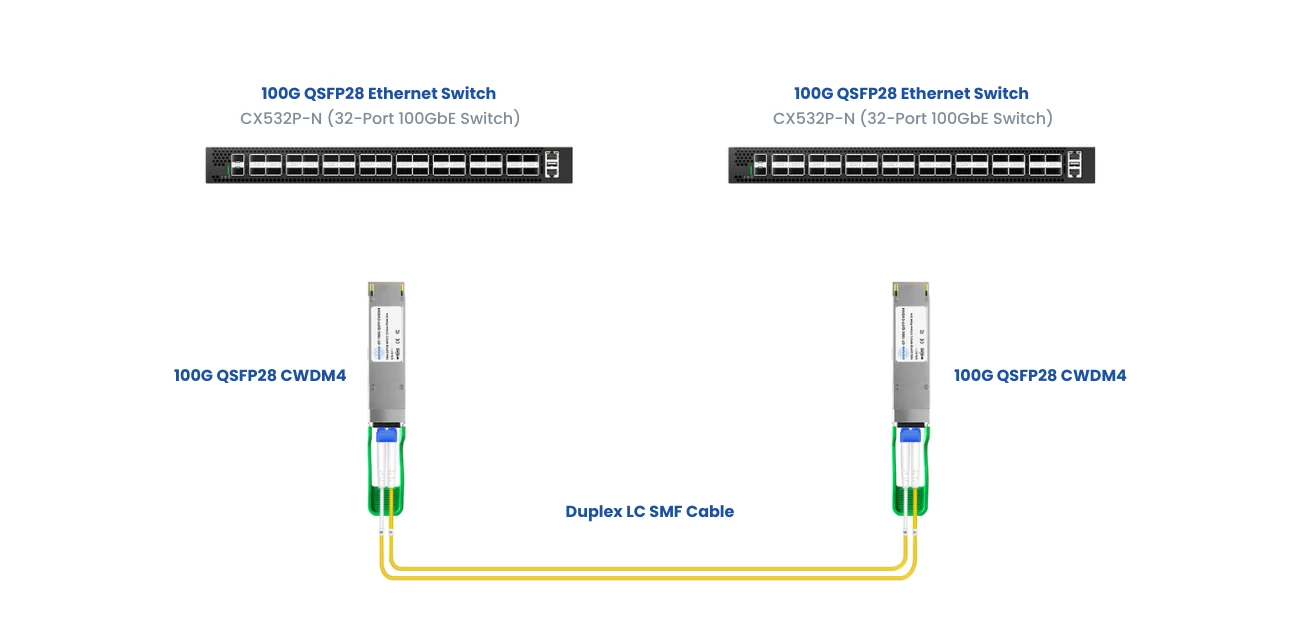

This 100G CWDM4 QSFP28 transceiver module supports 2 kilometers of transmission distance on SMF. It is the QSFP28 Multi-Source Agreement (MSA) and 100G CWDM4 MSA standards that are compliant with the 100GBASE CWDM4 optical transceiver module. With the four central wavelengths 1270nm, 1310 nm, 1290 nm, and 1330 nm, the 100G CWDM4 module allows simultaneous transmission of multiple signals on one fiber. Its low energy consumption of 3.5, as well as a commercial temperature range of 0 to 70 degrees Celsius, are major factors in its energy efficiency. The optical module offers high-bandwidth interconnectivity for companies and high-performance clusters of computers and secure connections to the backbone of data centers.

Form FactorQSFP28
ConnectorDuplex LC
MediaSMF
Max. Cable Distance2km
Data Rate100Gbps
Wavelengths Range1310nm CWDM4
Transmitter TypeDFB
Receiver TypePIN
TX Power-6.5~2.5dBm
RX Power-11.5~2.5dBm
Extinction Ratio>3.5dB
Supply Voltage3.3V
Op. Temperature0 to 70°C (32 to 158°F)
Humidity(non-condensing)5-85%
DDM/DOMSupported
Electrical InterfaceHot-pluggable
ApplicationData Center Interconnect Enterprise networking
Protocols100G Ethernet Compliant
